✓ Material：It has single-diameter and double-diameter specifications; the fan-shaped swelling surface has grooves to increase the locking force; except for corrugated paper The core can also provide a smooth fan-shaped surface.
✓ Feature：The flange and mandrel of the raw paper chuck are of integral forging structure, which has high strength and good load-bearing ability.Prevent slipping, and the tension control is more reliable.
✓ Application：Hydraulic mill roll stands for paper electrical mill roll stand paper chuck chucks for mill roll stand.
✓ PS：Before placing order，please contact us for checking the freight.The online freight is the cost by express.Shipping by sea will cost much less!
|

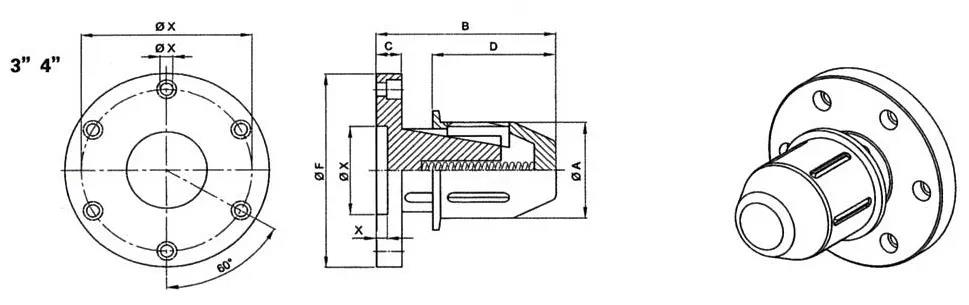

Model
|
A1/A2 mm
|
B
mm |
C
mm |
D
mm |
E
mm |
F
mm |
Max. Roll Weight(N)
|
Torque
(NM) |
|
3‘’/4’’
|
75.5/98
|
235
|
25
|
198
|
100
|
198
|
18000/25000
|
1150/2500
|
|
3‘’/6’’
|
74.5/148
|
274
|
30
|
216
|
109
|
216
|
18000/45000
|
1150/5000
|
