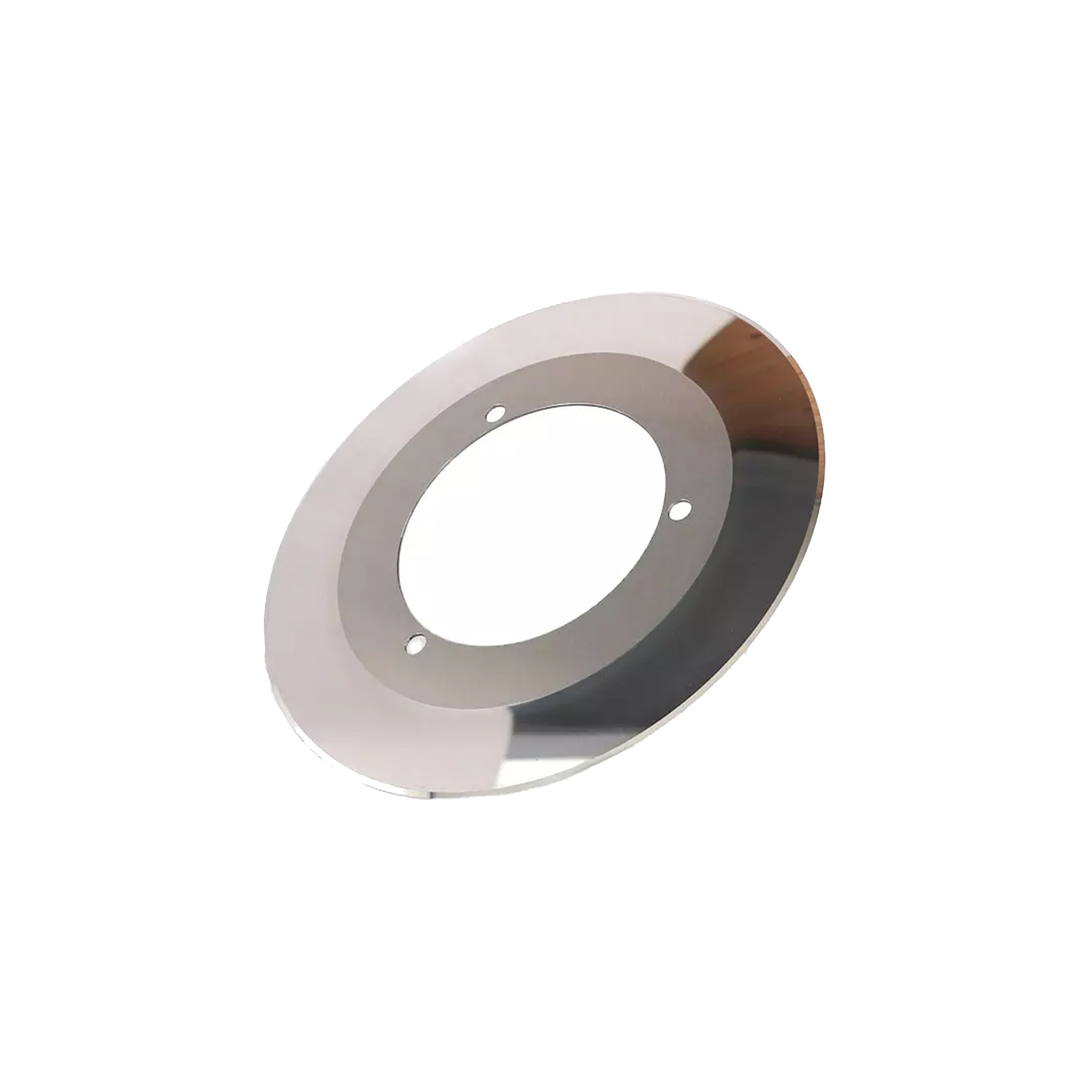

✓ Material：The blade is made from 100% virgin carbide materials. The blade was pressed with high pressures and heat treatment. it becomes very hardness.
✓ Feature：The blade have longer working time than normal metals steel blades.After grinding carefully and double checks, insure the blade precision and sharpness.
✓ Application：For paperboard/paper/cardboard/carton/Tobacco machine to cut.
✓ PS：Before placing order，please contact us for checking the freight.The online freight is the cost by express.Shipping by sea will cost much less!
|
No. |
Common sizes OD*ID*T(mm) |
Holes |
Available for machine |
|
1 |
φ230*φ110*1.1 |
6（holes）*φ9 |
FOSBER |
|
2 |
φ230*φ135*1.1 |
4 key slots |
FOSBER |
|
3 |
φ220*φ115*1 |
3（holes）*φ9 |
AGNATI |
|
4 |
φ240*φ32*1.2 |
2（holes）*φ8.5 |
BHS |
|
5 |
φ240*φ115*1 |
3（holes）*φ9 |
AGNATI |
|
6 |
φ250*φ150*0.8 |
- | PETERS |
|
7 |
φ257*φ135*1.1 |
- | FOSBER |
|
8 |
φ260*φ112*1.5 |
6（holes）*φ11 |
ORANDA |
|
9 |
φ260*φ140*1.5 |
- | ISOWA |
|
10 |
φ260*φ168.3*1.2 |
8（holes）*φ10.5 |
MARQUIP |
|
11 |
φ270*φ168.3*1.5 |
8（holes）*φ10.5 |
HSEIH |
|
12 |
φ270*φ140*1.3 |
6（holes）*φ11 |
VATANMAKEINA |
|
13 |
φ270*φ170*1.3 |
8（holes）*φ10.5 |
- |
|
14 |
φ280*φ160*1 |
6（holes）*φ7.5 |
MITSUBISHI |
|
15 |
φ280*φ202*1.4 |
6（holes）*φ8 |
MITSUBISHI |
|
16 |
φ291*φ203*1.1 |
6（holes）*φ8.5 |
FOSBER |
|
17 |
φ300*φ112*1.2 |
6（holes）*φ11 |
TCY |
